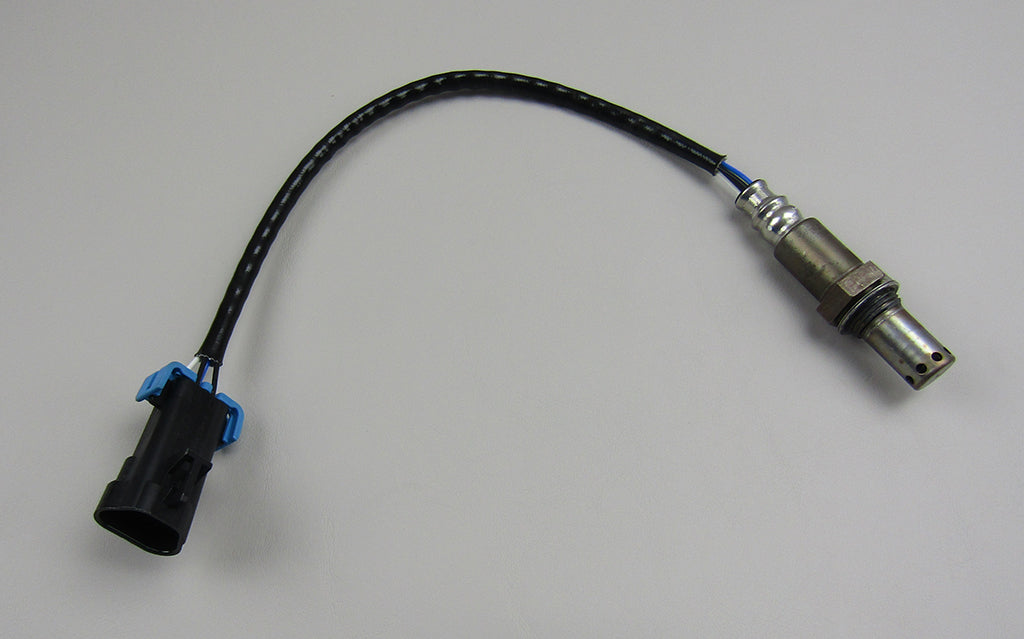

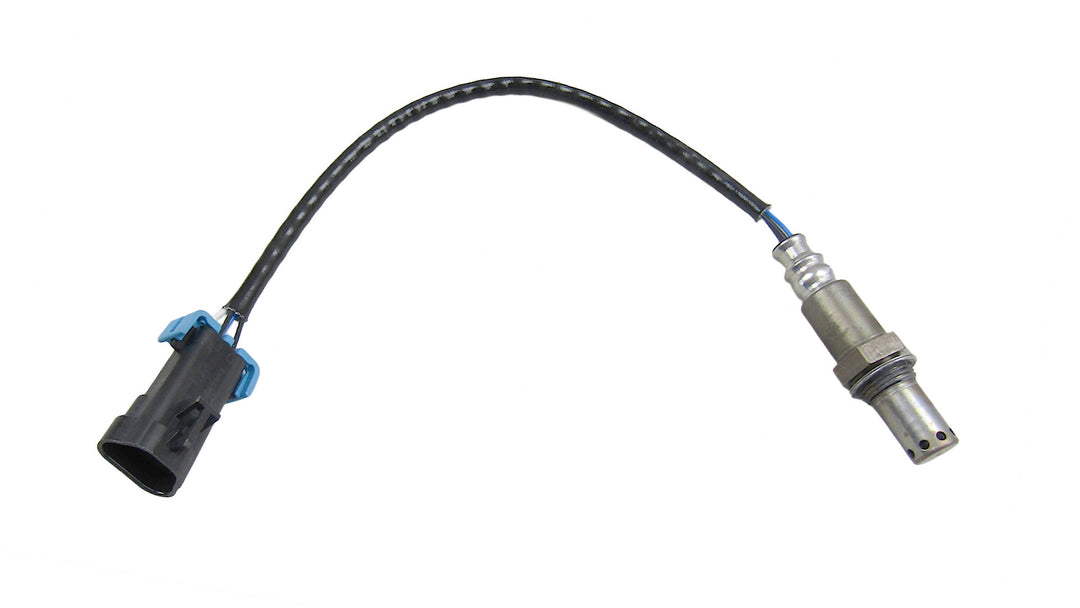

Post-Catalytic Converter Oxygen Sensor (Post-Cat O2 Sensor)

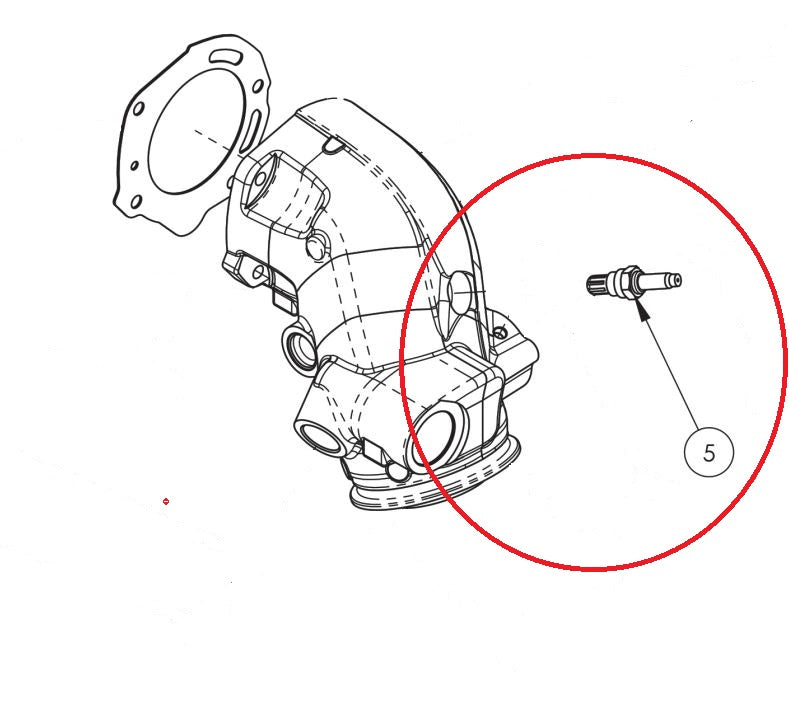

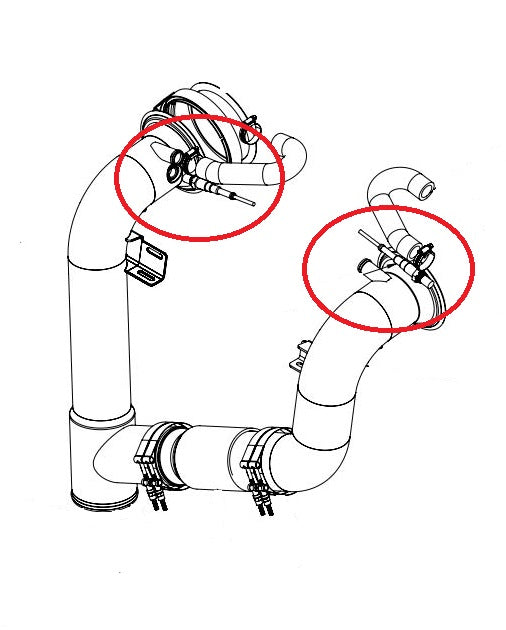

Location: Mounted in the exhaust elbow system or exhaust y-pipe after the catalytic converter

Installation Tips:

1. Safety First:

   • Make sure the engine and exhaust are completely cool to avoid burns.

   • Disconnect the battery to avoid electrical shorts.

2. Locate the Sensor:

   • Find the post-cat sensor—it's the one after the catalytic converter in the exhaust pipe.

   • Trace the wiring harness to confirm you're replacing the right one.

3. Unplug the Electrical Connector:

   • Carefully disconnect the sensor plug from the harness. Don’t pull on the wires—use the tab or connector body.

4. Remove the Old Sensor:

   • Use an O2 sensor socket (or a 7/8" / 22mm wrench) to loosen and remove the old sensor.

   • If it's stuck, spray with penetrating oil and let it soak a few minutes.

5. Prepare the New Sensor:

   • Most new sensors come with anti-seize compound on the threads. If not, apply a small amount—but don’t get any on the tip of the sensor.

6. Install the New Sensor:

   • Thread it in by hand to avoid cross-threading, then snug it down with the wrench.

   • Do not overtighten—snug is usually enough (typically 30-40 ft-lbs if torque spec is available).

7. Reconnect the Harness:

   • Plug the sensor back into the wiring harness. Make sure the connection is secure and routed safely away from heat or moving parts.

8. Clear Any Engine Codes (if needed):

   • If the sensor triggered a check engine light, clear the code using a scan tool or let the ECM reset over a few drive cycles.

Function:

• Monitors the efficiency of the catalytic converter by measuring the oxygen content in the exhaust gases after they pass through the converter.

• Sends data to the Engine Control Module (ECM) to ensure emissions are within regulation and to help maintain optimal fuel-air mixture.

Notes:

• It’s different from the pre-cat O2 sensor, which is located before the catalytic converter and is more focused on fuel trim adjustments.

• The post-cat sensor primarily monitors the performance of the cat converter, not engine tuning.
